MIGRO

Easy Automation











Applications:

Lighting control

Packing Machines

Farm equipment

Robots

Palletizers

Printing

Stand alone test sites

 Generators

Preventive Maintenance

 Building automation

 Wireless controls

Gate control

Security systems

Energy management






Application Examples




MIGRO     ELC  PLC controller

•
Automation, for small or large applications,
  Real time maintenance
, Silos, Conveyors,
  Pumps,
HVAC, Irrigation, Lights, Generators,
  Trucks, Boats, Building automation.

• Monitoring and control, stand alone plc
With all the features from the most advanced PLC controllers. Pre programmed functions, display up to 64 messages, Analog, PWM outputs, support DataLink and Modbus, expandable up to 186 I/O

• Modular design for flexible applications
• Digital, analog and communications modules
•
Programming Drag & Drop on
®Windows
•
Easy configuration
• Multiple 365 day time clocks & counters

Programming via RS-232C or USB
• IP20 enclosed case with HMI or LED I/O
• Built-in Real-Time Clock
Relay outputs, 10 Amp @ 250 V
• DIN-rail mount






  PLC with LED input and output status indicators Model
8 AC inputs, 4 relay outputs  120/220 VAC EL12AC
8 DC inputs, 4 relay outputs  12/24 VDC EL12DC

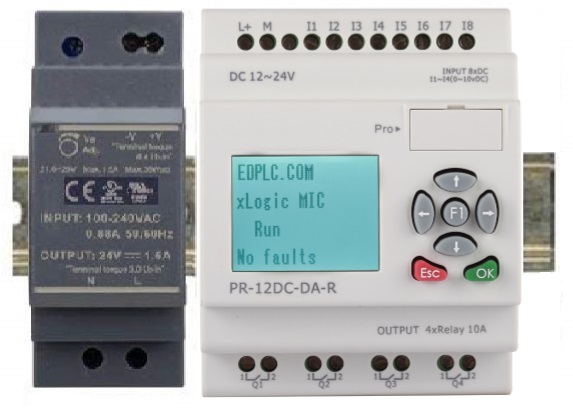

 PLC with keyboard and HMI display Model
8 AC inputs, 4 relay outputs HMI  Display & Keypad 120/220 VAC ELC12AC

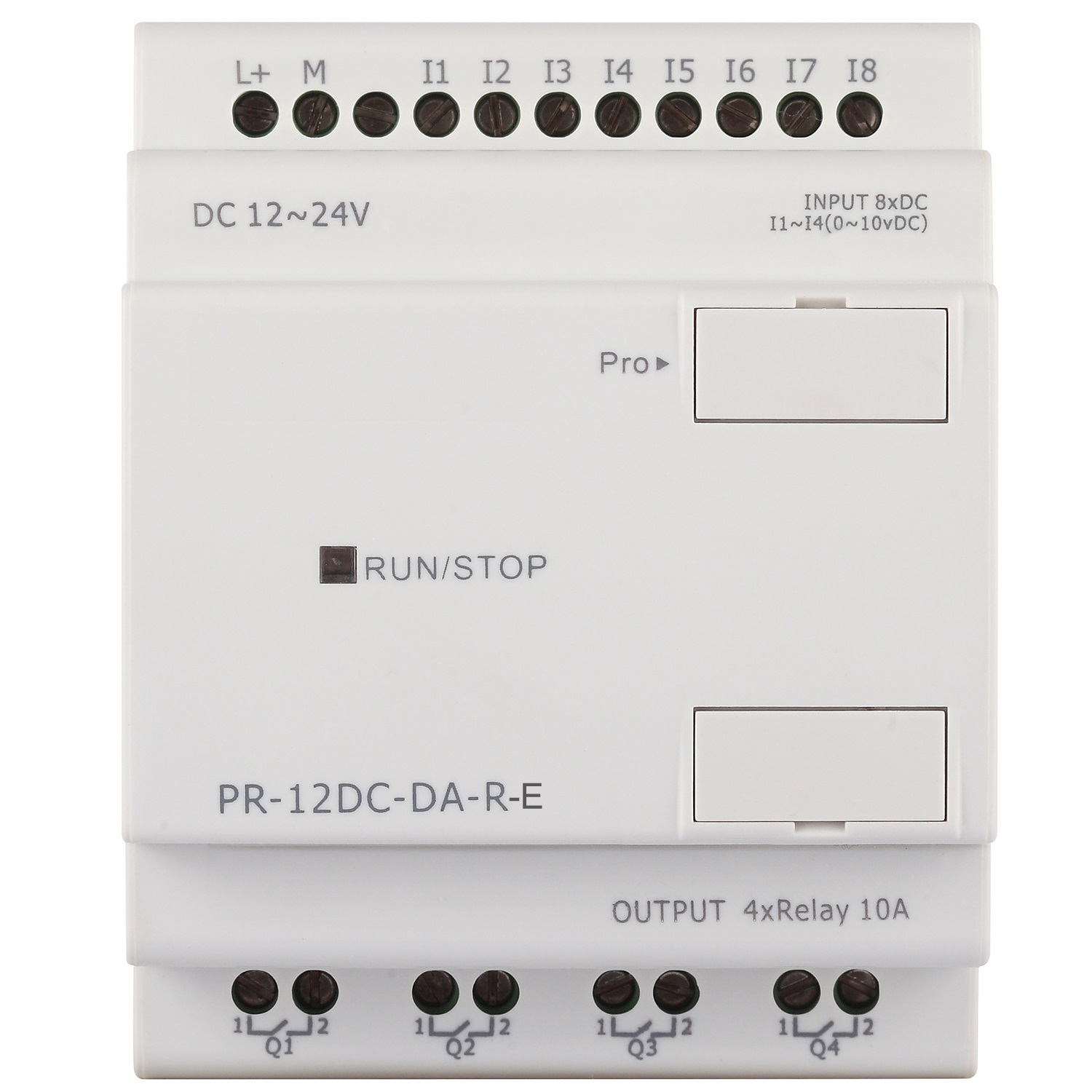

(8 DC inputs), 4 inputs can be used as 0-10V or analog
4 relay outputs, HMI  Display  & Keypad 12-24 VDC
ELC12DC
12 AC inputs, 6 relay outputs HMI  Display & Keypad 120/220 VAC ELC18AC
(12 DC inputs), 6 inputs can be used as 0-10V or analog
6 relay outputs, HMI  Display  & Keypad 12-24 VDC
ELC18DC
(16 DC inputs), 8 inputs can be used as 0-10V or analog
10 relay outputs, Large HMI 4x16 Display, 4 function Keypad
EL26DC
(20 DC inputs), 10  inputs can be used as 0-10V or analog
14 relay outputs, HMI  Display & Keypad 12-24 VDC
EL34DC
   ELC26 & ELC34

   Expandable up to
   84 inputs & 74 outputs

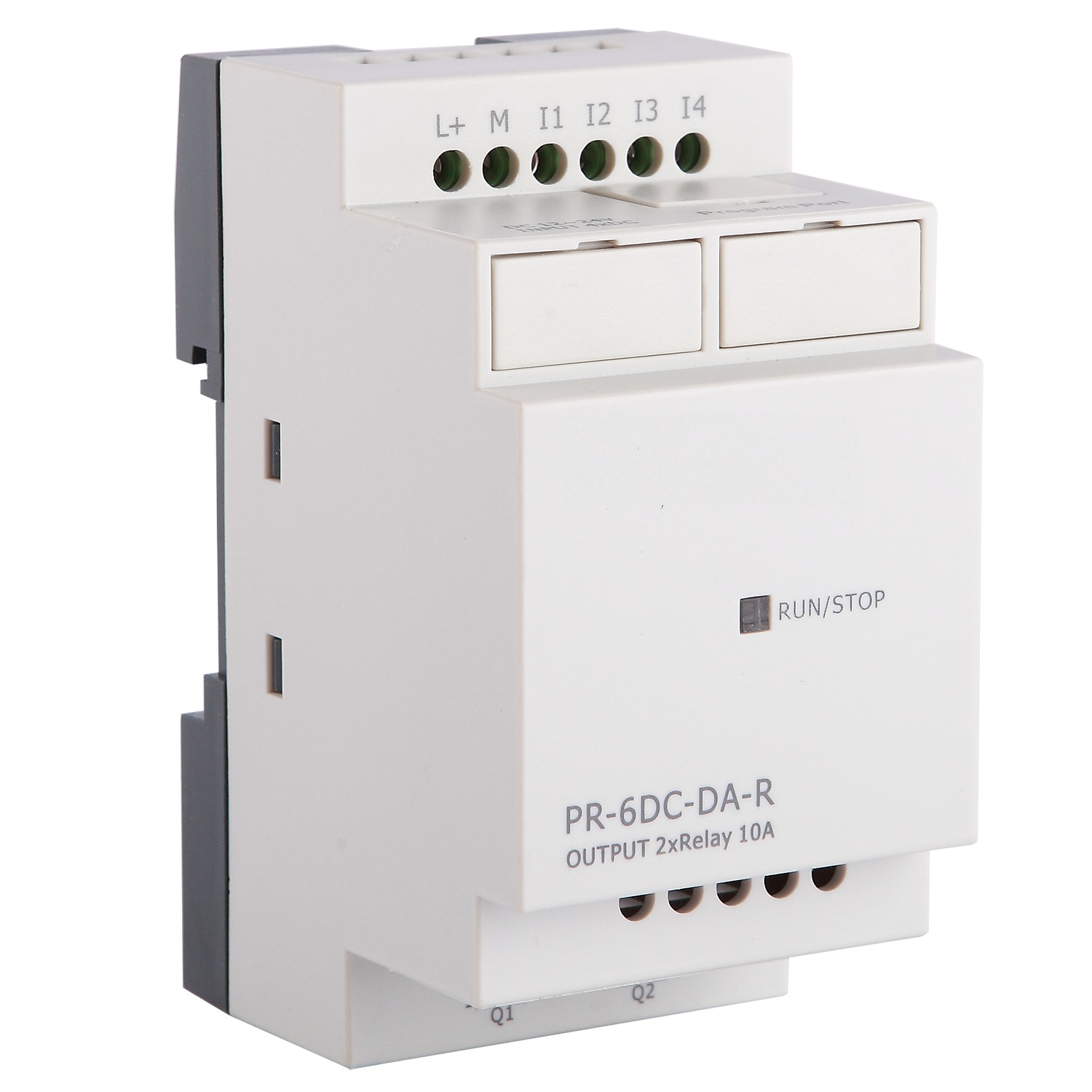

  Micro PLC  universal applications   6 I/O Model
4 AC inputs, 2 relay outputs 120/220 VAC EL6AC
4 AC inputs, 2 relay outputs  12-24VDC EL6DC

     Accessories Model
Ethernet Communication Module

RS485 Communication Module
ELTPCP

ELRS485

RS-232 Program interface cable  ELRS232

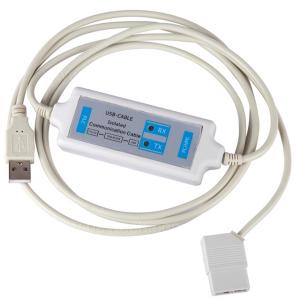

  USB-Program interface cable ELUSB2
 DIN  Power Supply  120/220VAC / 24 VDC, 30W 932430
  DIN  Power Supply  120/220VAC / 12 VDC, 30W 931230

       Software Example    Programming Examples      Programming video


 * Programming assistance is available upon request, consulting charges may apply



® Windows is a  registered trade name of Microsoft Corporation - © AM Products inc.
